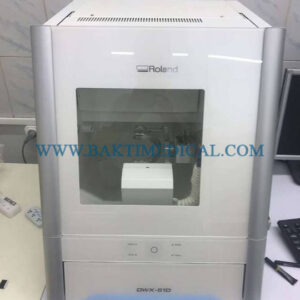

Roland DWX-51D Dental Milling Unit

Description

Roland DWX-51D

Roland DWX-51D Dental Milling Unit is designed for effortless production of dental prosthetics. Built for precision, error-free milling, you don’t need any machine expertise to operate it. With touch-button controls and automated milling features, the production of high-quality bridges, crowns, inlays, onlays, abutments and other restorations out of 98 mm discs and blocks has been made virtually foolproof.

More About the Roland DWX-51D

For thirty years, Roland DG has been the trusted provider of milling machines that are built to last. The DWX-51D 5-Axis Dental Milling Machine is no exception. After extensive research in which lab technicians were asked what they needed in a production mill, the DWX-51D was developed to enhance user experience, maximize ease-of-use and improve output quality. Built with a simple and modern design, the DWX-51D looks as effortless as it operates.

The Roland DWX-51D Dental Milling Unit offers the best performance and value for dry milling zirconia and other popular materials. For those wanting to combine dry and wet milling, running the the DWX-51D dry mill alongside the DWX-4W wet mill offers the most flexible and productive solution. Using separate dry and wet DWX devices gives you the confidence to take on the maximum amount of glass ceramic and zirconia restorations without the need for time-consuming, back-and-forth set-up and cleaning of a single machine.

Features

• 5-axis simultaneous operation for non-stop precision milling
• Sturdy and efficient ball screw-driven system
• New C-Clamp for easy adjustment and alignment
• 10-station Automatic Tool Changer (ATC) for continuous milling
• Powerful vacuum and anti-static ionizer for clean calibration and dust reduction
• Sturdy frame ensures stability, while slim design fits nearly any lab space
• Easy access tool drawer properly stores and protects tools
• Color-coded LED status lights signal current job progress
• Easily accessible cutting area for simple tool replacement and cleaning

5-Axis Machining for Smoother Production
The DWX-51D is a smooth and steady ball screw-driven machine capable of milling complex restorations. It operates on X,Y and Z axis – simultaneously rotating blocks and discs. Tilting on the B axis supports deep undercuts and the complex milling of large arch restorations and other full-mouth prosthetics.

Clean and Comfortable Operation
A unique inner structure with spacious airflow supports comfortable operation, while an automatic dust collection feature boasts a powerful vacuum for clean usage and calibration. An ionizer removes static, ideal for milling PMMA material.

Economical Open Architecture
The open architecture of the DWX-51D lets you work with the latest materials, CAD/CAM software and scanners, without relying on a single source.

Connect Multiple Machines and Increase Production
The DWX-51D offers multicast capability that allows connection of up to four Roland DG machines to one computer, making it easier than ever for dental labs to expand their businesses and increase production capacity.

VPanel for Simplified Operation
Complex controls associated with CNC milling have been replaced by a user-friendly Virtual Machine Panel (VPanel) that automatically starts the milling process, conducts machine diagnostics and operates milling calibration from your computer.

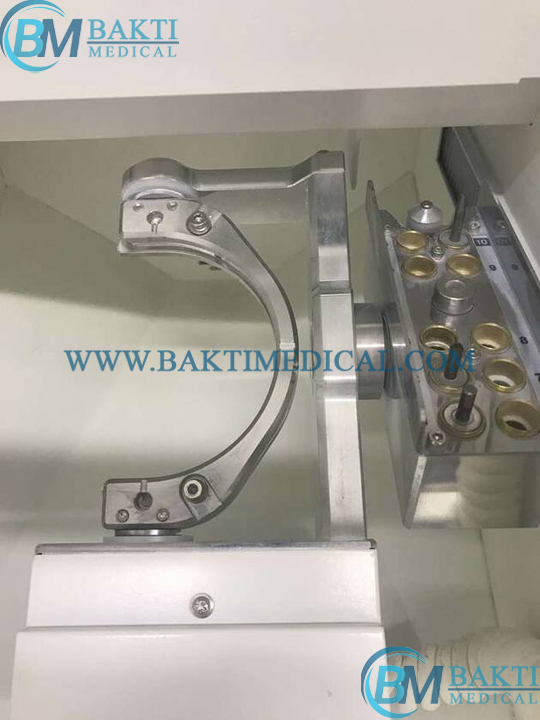

New C-Clamp for Quicker Set-Up
The new C-clamp on the DWX-51D requires the adjustment of only two screws for a simplified set-up. The C-clamp (which includes a torque driver for improved clamping consistency) also provides exact alignment and uniformity, resulting in fewer misalignment issues.

10-Station Automatic Tool Changer for Continuous Milling
With a 10-station Automatic Tool Changer (ATC), DWX-51D users don’t have to stop production to replace the specific burs needed for milling different materials.
